Plastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production Line

After-sales Service : Overseas Installation, Free Technical Supporting

Brand Name : HUASHIDA

Model Number : 200-1000mm

Certification : CE, ISO9001:2008

Place of Origin : Qingdao, China

MOQ : 1

Price : US$150,000.00-200,000.00

Payment Terms : L/C,D/P,T/T

Supply Ability : 30 Set/Year

Delivery Time : 60DAYS

Packaging Details : Standard Packing

Material : PP/HDPE

Screw No. : Single-screw

Field : Drainage/Water Supply/Sewage Discharge/Agricultura

Contact Now

Plastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production Line

Key Features & Advantages:

  • Unique structured wall design with high ring stiffness, strong impact resistance and low weight

  • Excellent creep resistance, external load resistance and chemical corrosion resistance (acid, alkali and salt resistant)

  • Service life up to 50 years

  • Pipe diameter range: 200 mm - 3000 mm

  • Widely used for municipal sewage and drainage systems

  • Ideal replacement for cement pipes, cast iron pipes and other traditional pipes

  • Advantages of low installation cost, easy connection and economical construction

  • Broad application prospects and strong market potential

Production process of HDPE hollow-wall corrugated pipe extrusion line:

Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray
cooling→ traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

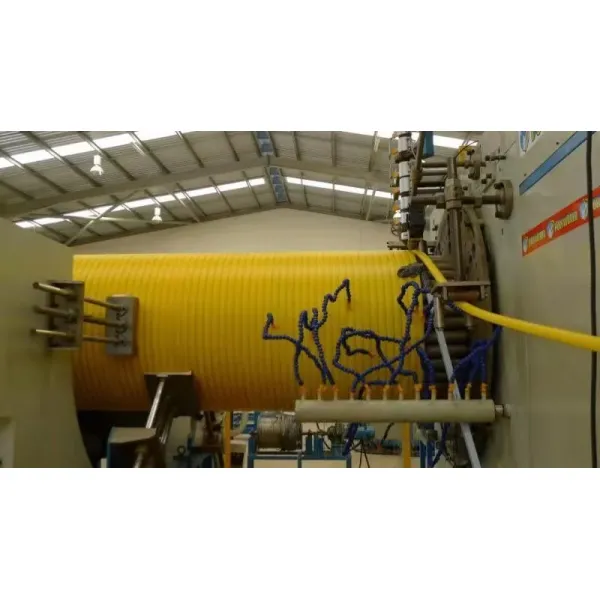

Plastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production Line
Plastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production Line
Plastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production Line


Product Parameters
Model Pipe Diameter(mm) Extruder Speed of forming Max. output Installed Power dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6

Composition of Equipments
1.1set Single screw extruder with vacuum loader& hopper dryer
2.1set Square tube die head & mould
3.1set Vacuum calibration table
4.1set Water spraying tank
5.1set Hauling machine
6.1set Single screw extruder with vacuum loader & hopper dryer
7.1set Melt adhesive extrusion die head
8.1set Rewinding forming machine
9.1set Cutting machine
10.1set Stacker
11.set PLC

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket
Detailed Photos

Plastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production LinePlastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production LinePlastic HDPE Structured Wall Spiral Pipe Weholite Krah Pipe Production Line


Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!


Product Tags:

200 mm - 3000 mm Pipe Diameter HDPE Structured Wall Spiral Pipe Production Line



Single-screw Extruder Corrugated Pipe Production Line



50 Years Service Life Weholite Pipe Production Line
