Automatic PLC Controlled 3LPE Coating Pipe Production Line for 50-4200 mm Pipeline Diameter Anti-Corrosion

Name: Automatic PLC Controlled 3LPE Coating Pipe Production Line for 504200 mm Pipeline Diameter AntiCorrosion
Brand: Huashida
Price: 150000 USD

Buy cheap Automatic PLC Controlled 3LPE Coating Pipe Production Line for 50-4200 mm Pipeline Diameter Anti-Corrosion product

Brand Name : Huashida

Model Number : 001

Certification : CE, ISO, RoHS, REACH

Place of Origin : China

MOQ : 1 set

Price : 150000-1000000

Payment Terms : T/T

Supply Ability : 5-10 +sets+per mouth

Delivery Time : 60 days

Packaging Details : Container loading，sea transportation

Coating Layers : 3 Layers

Control System : PLC

Pipe Surface Preparation : Shot Blasting

Origin : China

Connection Type : Welding

Operating Mode : Automatic

Coating Structure : Fbe, 2lpe, 3lpe

Coating Type : Internal, External

Heating Method : Induction Heating

Contact Now

Product Description

3 Layer Polyethylene (3LPE) Anti-Corrosion Steel Pipe Production Line for Oil & Gas

3-layer polyethylene (3LPE) anti-corrosion steel pipe
3LPE anti-corrosion steel pipe consists of a three-layer structure, combining advanced technology and high-quality materials to provide excellent anti-corrosion protection for pipelines:
Base layer: epoxy powder coating, which is tightly bonded to the surface of the steel pipe and provides excellent anti-corrosion performance.
Middle layer: copolymer adhesive (with branched functional groups) to ensure that the base layer is firmly bonded to the surface layer.
Surface layer: high-density polyethylene (HDPE), providing mechanical protection, low water absorption and environmental adaptability.

Automatic PLC Controlled 3LPE Coating Pipe Production Line for 50-4200 mm Pipeline Diameter Anti-Corrosion

Our Advantages

Efficient sealing: extremely high sealing performance, long-term operation can significantly save energy, reduce costs and protect the environment.
Excellent anti-corrosion: strong corrosion resistance, simple and fast construction, and a service life of 30-50 years.
Low temperature adaptability: still has good corrosion resistance and impact resistance in low temperature environment.
Material characteristics: combined with the high strength of epoxy powder, the low water absorption of polyethylene and the flexibility of hot melt adhesive, it ensures high reliability.
Economical and efficient: simple production process, excellent anti-corrosion effect, high cost performance, and meets international standards.

Technical parameters
Pipeline diameter: 50-4200 mm
Processing capacity: ≥250 square meters/hour
Surface cleanliness: ≥Sa2.5
Production materials: epoxy powder, adhesive, polyethylene

Technological processes

Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes

Product Parameters

No.	Name	Specification
A. Surface Cleaning Equipment
1	Steel pipe conveyor	Adjustable speed and angle, pipe uploading and unloading controlled by PLC
2	Shot blasting machine
3	Cyclone dust collector	High efficient downwind cyclone dust removal
4	Impulse cartridge dust collector
5	Centrifugal fan
6	PLC control system	Automatic control of the line
B. Coating Equipment

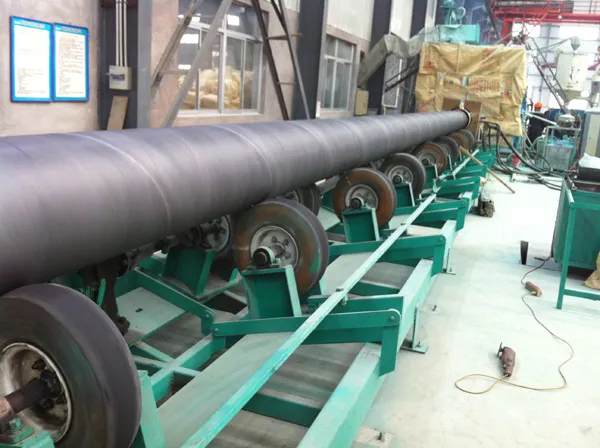

1	Spiral pipe conveyor	Adjustable speed and angle
2	Induction heating machine
3	Powder spraying device	Spraying thickness 80-800μm
4	Automatic feeder&dryer
5	SJ-65/30 Extruder
6	SJ-180/30 Extruder

7	Adhesive extruder die mould	High quality die steel
8	PE sheet extruder die mold	High quality die stee
9	Adhesive/PE sheet coating device	Pressing roller with silicon coating and internal cooling
10	Environmental Protection Ventilation equipment
11	Cooling Spray equipment
C.Platform Equipment
1	Steel pipe platform	High quality
D.Groove Equipment
1	PE Beveling Machine	Steel brush disk,
2	Hydraulic Lifting and Turning Machinery	For lifting and turning the pipe
3	Hydraulic Equipment

Application

3LPE anti-corrosion coating is an ideal outer protective layer for buried pipelines and is widely used in:

Oil and gas transportation: natural gas and oil long-distance pipelines.
Urban gas supply: urban gas pipeline network.
Water supply pipeline: urban and industrial water supply system.
Other fluid transportation: chemical, sewage treatment and other pipeline systems.
Performance improvement: high electrical insulation, waterproof, wear-resistant, anti-aging, and enhanced pipeline mechanical properties.

Company Profile

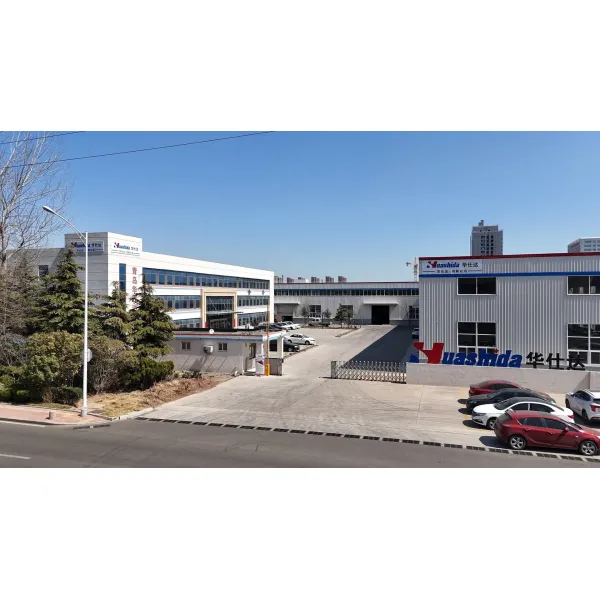

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
