Automatic HDPE Jacket Pipe Extrusion Line for PU Pre-Insulated Pipes— Equipment Composition List
|
|
Qingdao Huashida Machinery Co., Ltd. | Pre-Insulated Pipeline PE Outer Jacket Pipe Production Line
|
|
No.
|
Equipment Name
|
Specification / Model
|
Qty
|
Function Description
|
|
1
|
Raw Material Hopper & Auto Loader
|
Stainless steel hopper, vacuum auto-loading
|
1 set
|
Stores PE resin and automatically conveys raw material into the extruder feed throat; reduces manual labor and ensures continuous feeding.
|
|
2
|
Single Screw Extruder
|
SJ-150 / 33
|
1 set
|
Core extrusion unit; plasticizes and melts PE resin with stable output, designed for large-diameter jacket pipe production.
|
|
3
|

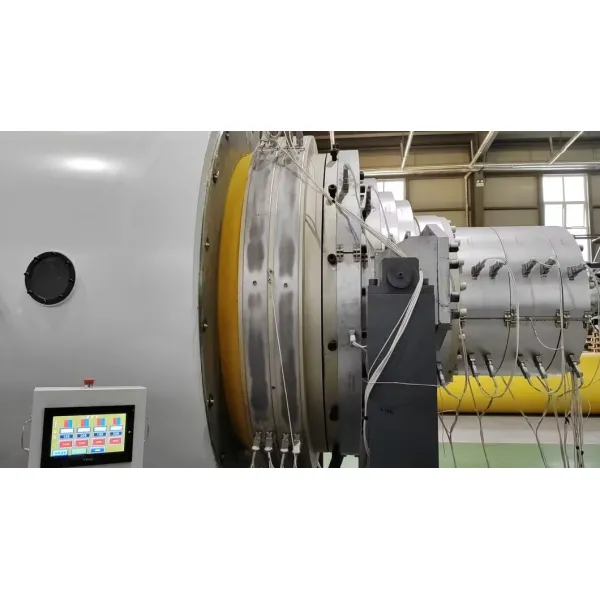

Extrusion Die Head (Mold)
|
Spiral mandrel die, Φ1155–2000mm range
|
1 set
|
Forms molten PE into a continuous tubular shape; ensures uniform wall thickness and concentricity of the jacket pipe.
|
|
4
|
Vacuum Calibration Tank
|
Stainless steel, vacuum + water cooling
|
1 set
|
Fixes pipe diameter and roundness under vacuum; cools and sizes the extruded pipe with precise dimensional control.
|
|
5
|
Haul-off Machine (Tractor)
|
multi-track, variable speed
|
1 set
|
Pulls the pipe forward at a constant speed synchronized with extrusion; maintains stable production line speed.
|
|
6
|
Planetary Chipless Cutter
|
Planetary rotary cutting, dust-free
|
1 set
|
Cuts PE jacket pipe to required lengths automatically; produces clean, burr-free cut ends without material waste.
|
|
7
|
Pipe Discharge Rack
|
|
1 set
|
Receives and stacks finished pipes
|
|
8
|
Electrical Control Cabinet
|
PLC + touch screen HMI, inverter drive
|
1 set
|
Central control system; monitors and regulates temperature, speed, vacuum and cutting parameters for fully automatic operation.
|
|
Note: Specifications are configurable based on pipe diameter range (Φ110–2000mm) and customer production requirements.
|
